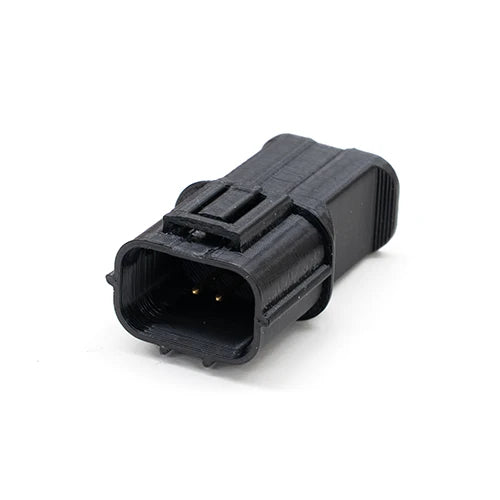

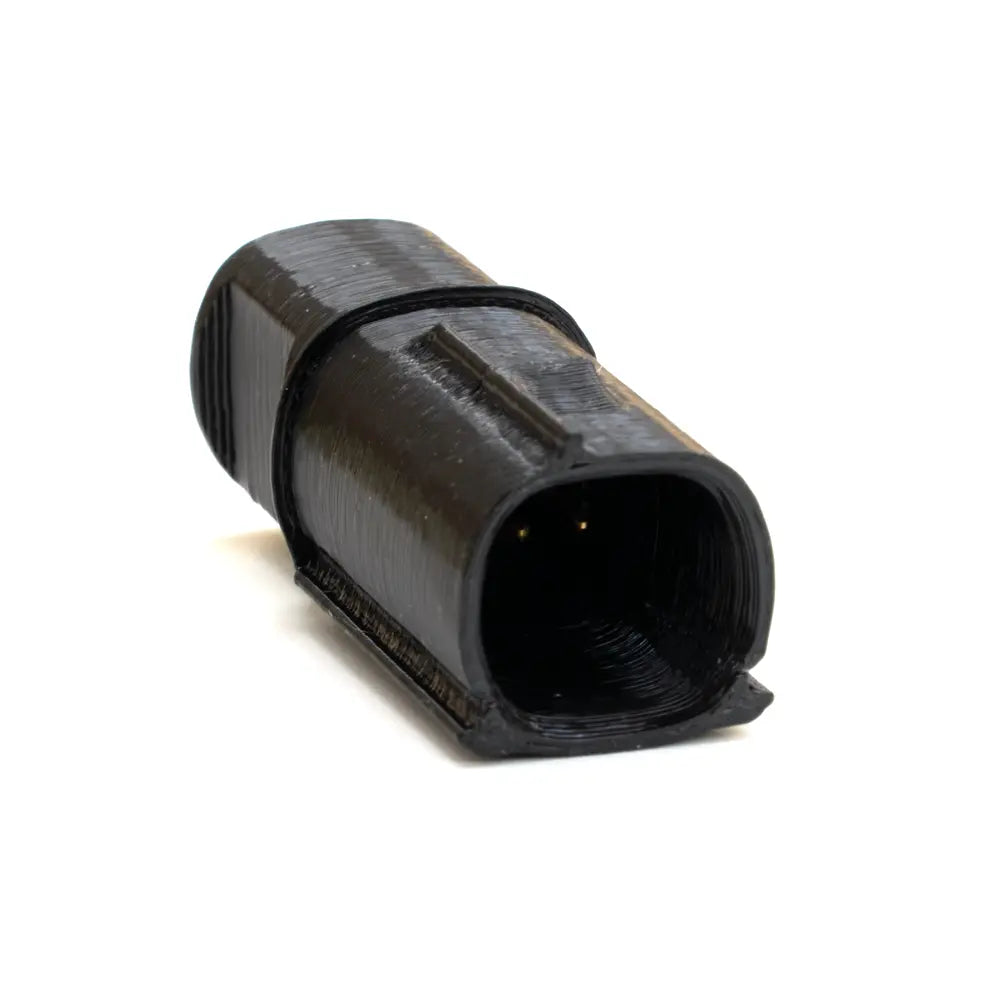

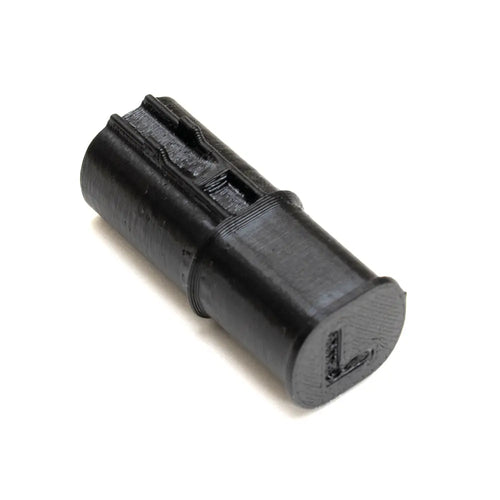

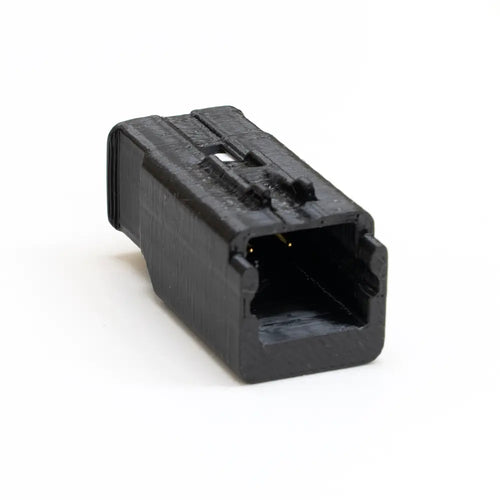

Airbag Emulator for Toyota & Lexus

In stock

Units sold: 13117

Which ones do I need?

$20.00 USD

We ship worldwide from Danville, California, USA.
Orders are shipped out on the next business day.
See delivery date estimates and various shipping options at checkout.
Need it quicker or not seeing an option for your destination? Contact us.
Customers outside the US: import duties and fees may apply.

Here's where we've sent our products so far:

If you have any issue with a product, contact us within 30 days of receiving it, and we'll make it right.

Product is defective or arrived damaged?

Please send photos to help us understand what's wrong. We'll send you a free replacement, or give you a return shipping label to send it back for a full refund.

Changed your mind or ordered wrong?

We'll still take it back and refund you as long as it's in like-new condition, but the original shipping will not be refunded, and the return shipping will also be deducted.

Our airbag emulators are guaranteed for life to:

Provide a 2.2Ω (± 10%) resistance to the designated, factory-original mating receptacle of a listed vehicle;
Mechanically insert into and latch with that receptacle.

Exceptions - the guarantees do not apply when:

The vehicle or product is sold or transferred to another owner.
Using the product on a vehicle or airbag location not listed in the compatibility tables.
Using the product on a front seat and not performing the additional required procedures for front seats.

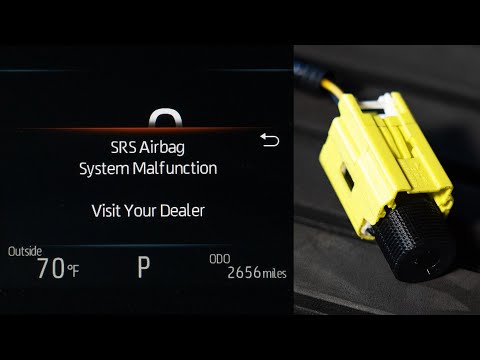

Eliminate False Airbag Warnings

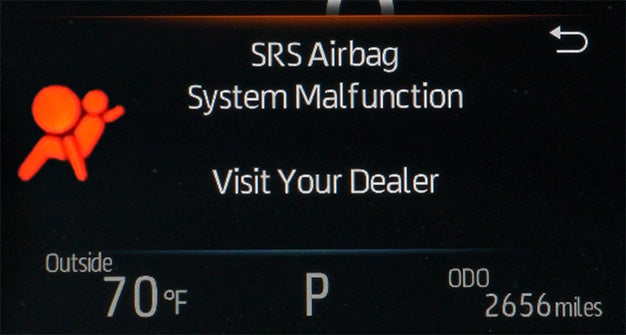

Removing a seat containing an airbag or seatbelt pretensioner causes an SRS warning, but it doesn’t specify which airbag is missing or malfunctioning. This means you can no longer detect if there's ever a different SRS problem.

Use these dongles to filter out "cry wolf" warnings, let the error appear only when there’s an unexpected malfunction, and give yourself and others peace of mind. Because each dongle has the same 2.2Ω resistance as the airbag, it's indistinguishable from the original airbag to the vehicle, so the rest of the SRS's function is unaffected and preserved.

(It does not fix any problem caused by damaged wiring, malfunctioning sensors, or a damaged/malfunctioning/deployed airbag/pretensioner.)

How to Use

Turn off the vehicle.
Always disconnect the car battery and wait at least 30 seconds before disconnecting or reconnecting an airbag. If you’ve already removed the airbag or seat and are just installing the dongle, you can skip this step.

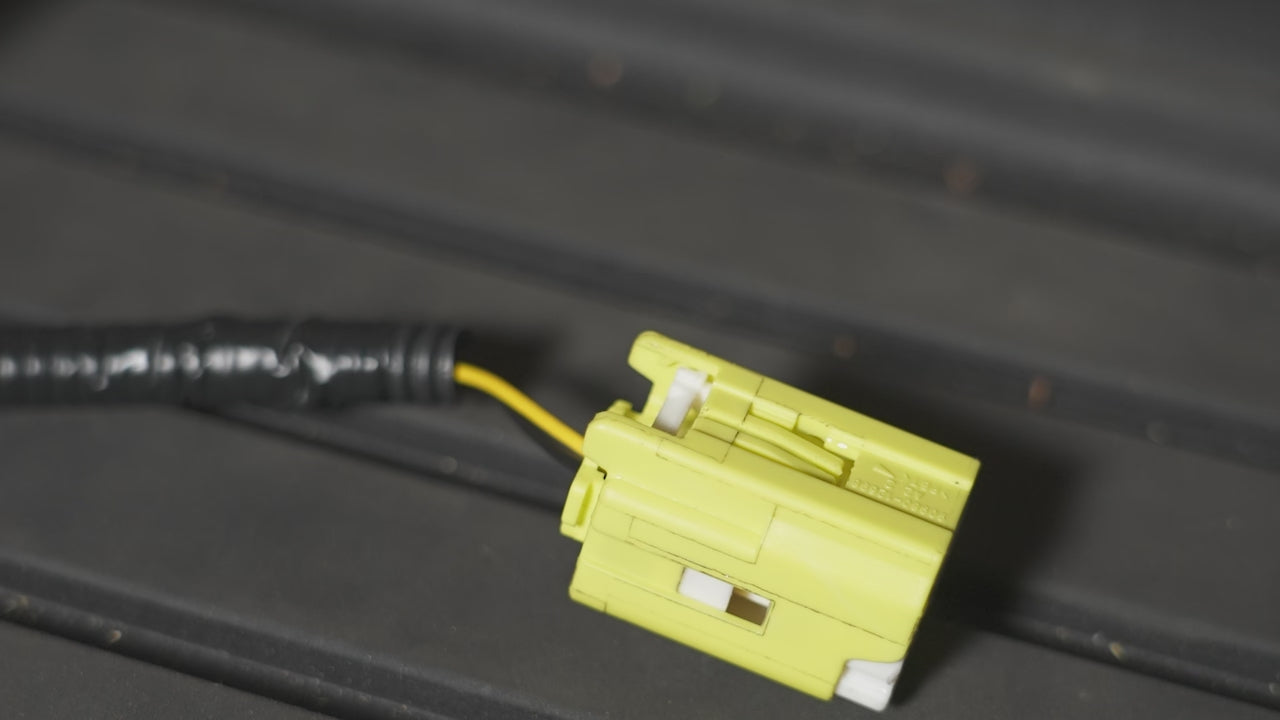

Push the dongle firmly into the airbag connector, until you hear a click.
Try tugging on the dongle — it should not pull out unless you push or pull the receptacle’s latch mechanism.
Don’t forget the extra steps below if this is for a front seat.
Start the car and verify that the SRS error is no longer present.

If there are any 4-or-more-pin connectors between your vehicle’s floor and seat, it means the front seats contain additional electronics such as the occupant classification system (OCS), seat belt buckle sensor, and/or seat position sensor. If these are disconnected, the vehicle may show an airbag error even if the airbag itself is emulated by a dongle. What you need to do depends on your vehicle and whether you're installing different seats or simply removing them:

Applications

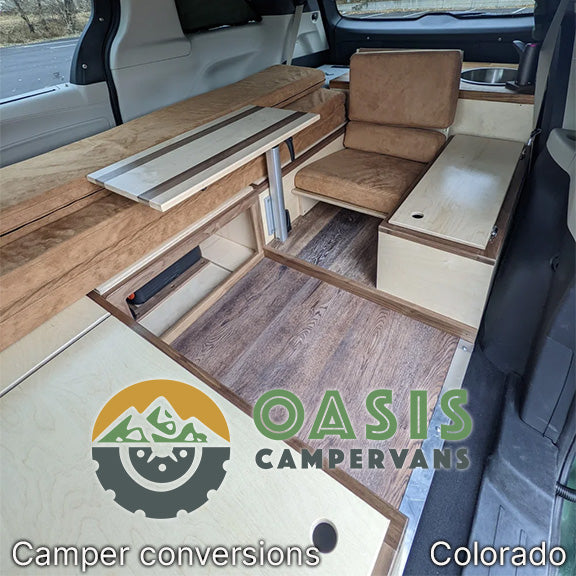

Camper vans

Wheelchair-accessible vans

Cargo/utility vans

Hearses

Racing seats / track cars

Off-roading

Pet transport

SRS troubleshooting

(Appearance of logo does not imply endorsement.)

Features

Positive Locking

Designed for each vehicle's receptacle to mate and lock perfectly with it, just like the original connector.

2-Second Install & Remove

No tape, zip tie, or tools needed.

Heat and UV Resistant

3D-printed polycarbonate shell that withstands UV radiation and temperatures up to 90°C. Automotive-grade resistor.

Which dongle do I need?

Vehicles vary by trim and region, so check the actual connectors in your car against the connector pictures at the top of this page. If that's not possible, look up your vehicle:

Another brand? Check our catalog. Can't find it for your vehicle? Contact us.

Common Questions

(Other names for airbag emulator: airbag simulator, airbag bypass, airbag dummy, airbag resistor, airbag proxy, airbag canceller, airbag delete)
